Prerequisites

Before you begin, make sure you have the following installed:

​
Setting Up Your Development Environment

​
1. Create a New Plugin Project

You have three options to start your plugin project:
  1. Visit our Blinko Plugin Template on CodeSandbox
  2. Click “Fork” to create your own copy
  3. The development server will start automatically

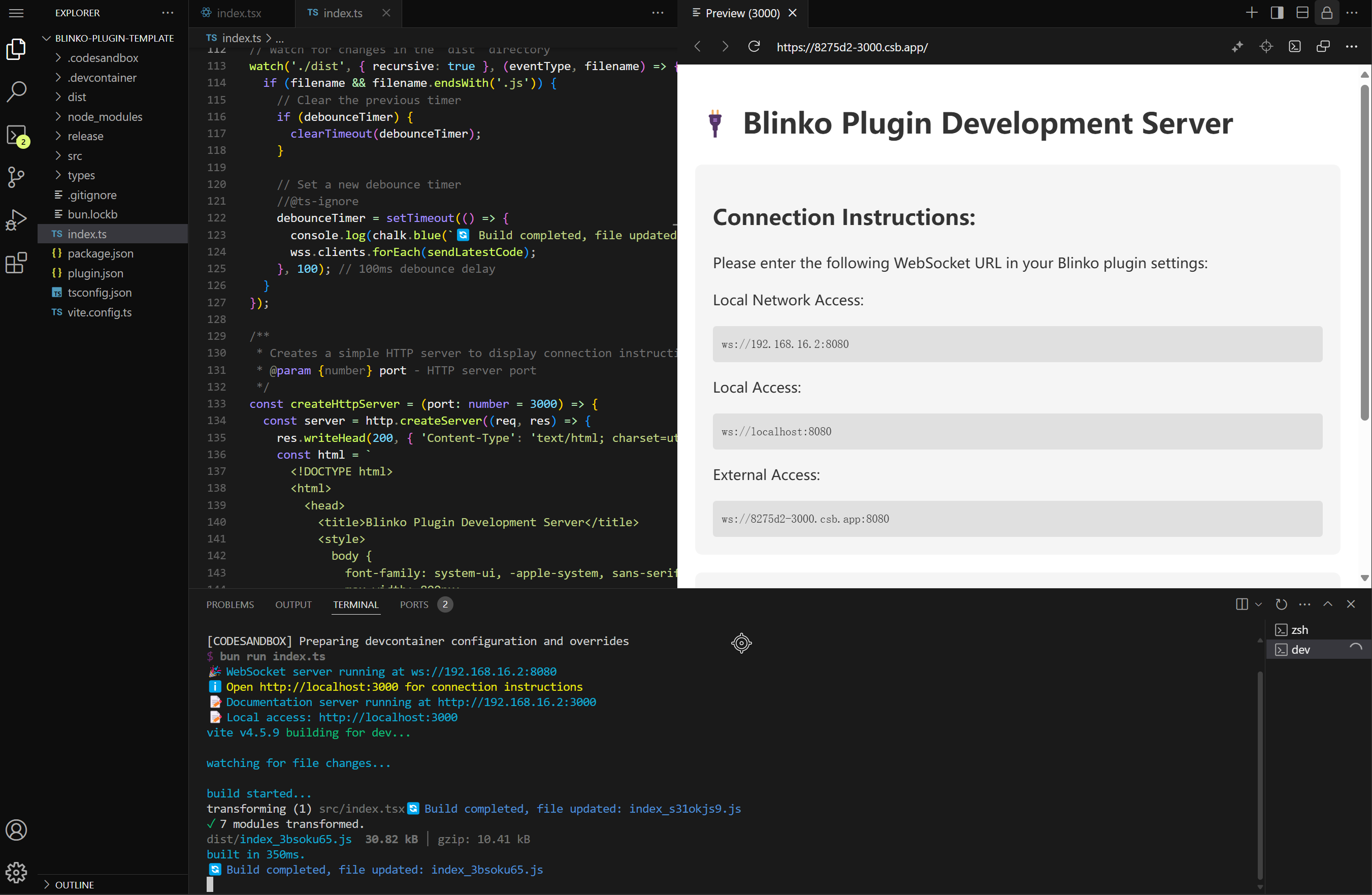

  4. You’ll see the connection instructions at http://localhost:3000 showing:
    • External Access: ws://<sandbox-id>.csb.app:8080
This is the fastest way to get started as it:
  • Requires no local setup
  • Provides instant development environment
  • Offers built-in documentation server
  • Enables easy sharing and collaboration

​
Option B: Use the Template Repository

  1. Visit the Blinko Plugin Template
  2. Click the “Use this template” button
  3. Follow the GitHub prompts to create your repository

​
Option C: Clone the Template Repository

git clone https://github.com/blinko-space/blinko-plugin-template.git my-blinko-plugin
cd my-blinko-plugin

​
2. Install Dependencies

Once you have your project set up, install the dependencies:
bun install

​
3. Start Development Server

Start the development server to begin working on your plugin:
bun dev
This will start a local development server, typically at ws://localhost:8080.

​
Project Structure

The template provides a basic structure for your plugin:
my-blinko-plugin/
├── dist/               # Build output directory
├── release/           # Release build output
│   └── index.js       # Compiled plugin code
├── src/               # Source code directory
│   ├── locales/      # Internationalization files
│   ├── app.tsx       # Main React component
│   ├── index.tsx     # Plugin entry point
│   └── setting.tsx   # Plugin settings component
├── index.ts          # Development entry point
├── plugin.json       # Plugin metadata
└── vite.config.ts    # Vite build configuration

​
Key Files Explained

​
plugin.json

This file contains your plugin’s metadata:
{
  "name": "blinko-plugin-demo",
  "author": "blinko-offical",
  "url": "https://github.com/blinko-space/blinko-plugin-template",
  "version": "0.0.4",
  "minAppVersion": "0.0.0",
  "displayName": {
    "default": "Blinko plugin demo",
    "zh": "Blinko插件示例"
  },
  "description": {
    "default": "This is a blinko plugin demo, you can use it as a template to create your own plugin.",
    "zh": "这是一个blinko插件示例，你可以使用它作为模板来创建自己的插件。"
  },
  "readme": {
    "default": "README.md",
    "zh": "README_zh.md"
  }
}
Key fields explained:
  • name: Unique identifier for your plugin (required)
  • author: Plugin author’s name or organization (required)
  • url: Repository or homepage URL (required)
  • version: Plugin version following semver (required)
  • minAppVersion: Minimum Blinko app version required
  • displayName: Localized plugin names
    • default: Default display name (English)
    • zh: Chinese display name (optional)
  • description: Localized plugin descriptions
    • default: Default description (English)
    • zh: Chinese description (optional)
  • readme: Localized documentation files
    • default: Default README file path
    • zh: Chinese README file path (optional)
When you run bun dev, the development server:
  1. Starts a WebSocket server for communication
  2. Watches the dist directory for changes
  3. Automatically rebuilds when source files change
  4. Sends the updated code to connected Blinko clients
You can access your development server at:
  • Local: ws://localhost:8080
  • Network: ws://<your-local-ip>:8080

​
External Access with Ngrok

If Blinko is not deployed in your local network, you’ll need to use ngrok to make your plugin accessible from the internet:
  1. Start your development server first:
bun dev
  1. In a new terminal, run the ngrok command:
bun ngrok
This will create a secure tunnel to your local development server and output something like:
✨ Tunnel established
🌍 Forwarding: wss://xxxx-xx-xx-xxx-xx.ngrok.io -> ws://localhost:8080
Now you can use the ngrok URL (e.g., wss://xxxx-xx-xx-xxx-xx.ngrok.io) in Blinko to connect to your plugin. The development server provides real-time feedback:
🎉 Development server running at ws://192.168.1.100:8080
🔌 New Blinko client connected
📦 Build code size: 1234 bytes, Filename: index_abc123.js
🔄 Build completed, file updated: index.js

​
Next Steps

​
Connect Your Plugin to Blinko

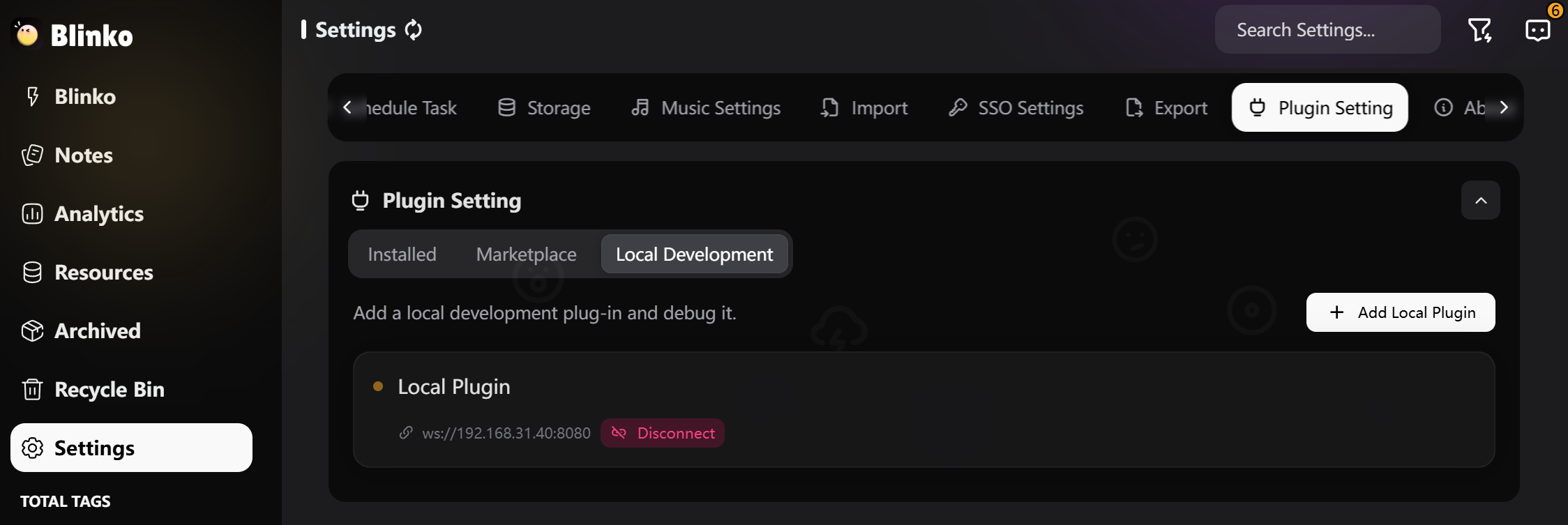

Once your development server is running, follow these steps to add your plugin to Blinko:
  1. Open Blinko and go to Settings
  2. Click on “Plugin Setting”
  3. Switch to the “Local Development” tab
  4. Click the “Add Local Plugin” button
  5. Enter your WebSocket URL:
    • Local: ws://localhost:8080
    • Network: ws://<your-local-ip>:8080
    • Ngrok: wss://xxxx-xx-xx-xxx-xx.ngrok.io (if using ngrok)
  6. Click “Connect” to start using your plugin
Add Local Plugin If the connection is successful, you’ll see your plugin listed as “Local Plugin” with a green status indicator.

​
Troubleshooting Connection Issues

If you can’t connect to your plugin:
  1. Make sure your development server is running (bun dev)
  2. Check that the WebSocket URL is correct
  3. If using a local network URL, ensure you’re on the same network
  4. For ngrok connections, make sure to use the wss:// URL provided by ngrok

​
